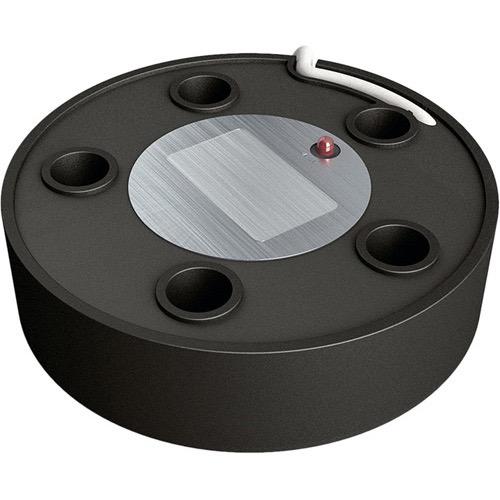

Vetus SENSORA Ultrasonic Tank Level Sensor - 12/24V - Analogue - Water, Fuel & Waste
Vetus SENSORA Ultrasonic Tank Level Sensor - 12/24V - Analogue - Water, Fuel & Waste
Couldn't load pickup availability
-
Ordered
- - -
Order Ready
- - -
Delivered
Vetus SENSORA Ultrasonic Tank Level Sensor - 12/24V - Analogue - Water, Fuel & Waste
Monitor fluid levels in any tank shape without contact using the Vetus SENSORA ultrasonic level sensor. Unlike traditional float-type senders, the SENSORA measures from outside the fluid — making it compatible with petrol, diesel, drinking water, black water, and grey water in tanks of any shape, up to 120cm deep. Calibration is straightforward using just the built-in LED and a calibration wire; no additional equipment required.
Connects to all standard Vetus analogue level indicators and the Vetus waste water control panel (WWCP). When fitting to a Vetus fuel tank filler kit (FTKIT), adaptor SENSORSR must also be ordered. Not recommended for metal tanks.
Specifications
- SKU: SENSORA
- Voltage: 12/24V D.C.
- Current consumption: 35mA
- Interface: Analogue
- Max. tank depth: 120cm
- Accuracy: ±5%
- Temperature range: −20 to +70°C
- Flange: SAE, 5-hole
- Dimensions: Ø77 x 23mm
- Compatible fluids: Petrol, diesel, drinking water, black water, grey water
- Note: Not suitable for metal tanks
