Vetus Adaptor Flange AISI 316 Stainless for HTP Helm Pump – 74mm Recess Depth (HTPF2)

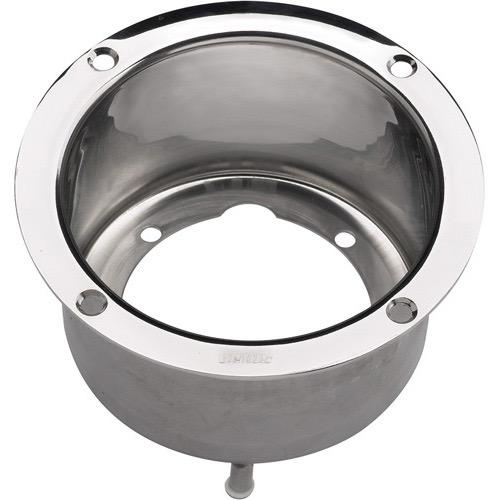

The Vetus HTPF2 is a polished AISI 316 stainless steel adaptor flange for fitting or recessing the Vetus HTP helm pump (or replacing an older MTP type pump) by 74mm into the dashboard or bulkhead. It also provides a refined, finished appearance around the pump installation.
For a 38mm recess, use type HTPF. For outside helm stations where the pump is mounted on an inclined bulkhead or sloping dashboard, a seal set (type HTPF3) is recommended to prevent water entering the boat through the telescopic wheel adjuster housing.
Key Features
- Polished AISI 316 stainless steel
- Recesses HTP pump 74mm into dashboard or bulkhead
- Also suits replacement of older MTP type pumps
- Provides a refined, finished look around the pump
- 38mm recess version available: HTPF
- Seal set for outdoor/inclined installations: HTPF3
Specifications
| Part Number | HTPF2 |
| Material | AISI 316 stainless steel (polished) |
| Recess depth | 74 mm |
| Compatible pump | Vetus HTP (also suits MTP replacement) |
| 38mm recess variant | HTPF |
| Seal set (outdoor use) | HTPF3 (sold separately) |
