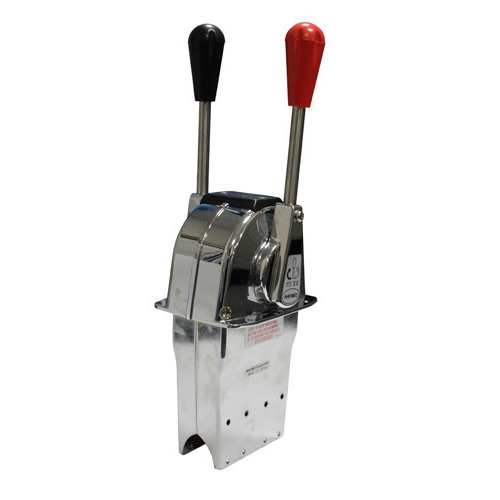

Top Mount Control - NB Series

Single Function Control:
A durable chrome finish control with stainless steel lever arms, suitable for exposed installations. Controls with throttle lever have a twist grip throttle brake to handle larger diesel mechanism throttle/governor loads. Suits inboards with hydraulic gearbox, stern drives and outboards.

Features:

• One function, one or two levers
• One handle for gear, one handle for throttle
• Available as throttle only, or gear and throttle, or twin throttle
• The throttle brake is simply applied by twisting the lever once the desired setting has been established
• Detents for forward/neutral/reverse incorporated in gear controls
• Can be used for dual station installations, where both stations move together, although care must be taken to avoid operating one station if the other throttle is firmly dampened down
• Especially suitable for engines with heavygovernor load (i.e. Gardner diesel)

  Cables:
  Accepts universal 30/33 series cables, CC230, CC330, CC332, CX632 and CCX633. Fittings for these cables are supplied with control. Also accepts 40/43 series cables. Fittings for these cables are also supplied with control.

  Materials:
• Marine quality chrome plated
• Die-cast zinc alloy housing
• Stainless steel lever arms
• Die-cast zinc alloy internal rocker arm
