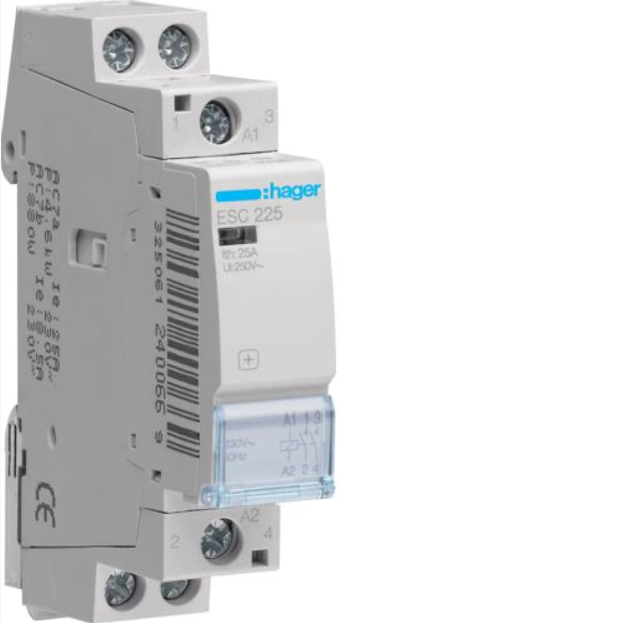

Hager ESC225 25A, 2-NO Contactor
Hager ESC225 25A, 2-NO Contactor
Regular price
$27.06
Regular price
$27.06
Sale price
$39.80
Unit price
per
Couldn't load pickup availability
-
Ordered
- - -
Order Ready
- - -
Delivered
Hager ESC225 25A, 2-NO Contactor
Regular price
$27.06
Regular price
$27.06
Sale price
$39.80
Unit price
per
Product Details
- Rated operational voltage Ue: 230 V
- Frequency: 50 Hz
- Rated current: 25 A
- Rated insulation voltage: 250 V
- Rated impulse withstand voltage: 4 kV
- Depth of installed product: 60 mm
- Height of installed product: 83 mm
- Width of installed product: 17,85 mm
- Total power loss under IN: 5,9 W
- Power dissipation per coil: 2,9 W
- Electric endurance in number of cycles: 30000
- Number of mechanical operations: 100000
- Number of modules 1
- Max. power with fluorescent parallel lamps: 810 VA
- Max. power with incandescent lamps: 1900 W
- Tightening torque: 1,2Nm
- Connection cross-sect. flexible conductor: 1 / 6mm ²
- Connection cross-sect. rigid cable: 1 / 10mm ²
- Type of connection: with screw
- Type of contacts: 2NO
- Can be accessorized: Yes
- European directive WEEE: concerned
- Protection index IP: IP2X
