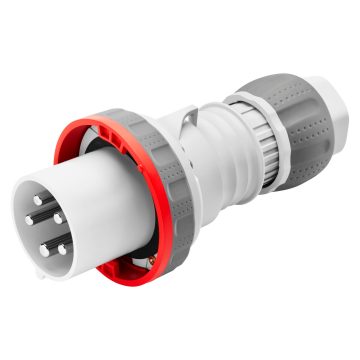

Gewiss GW61052H 3P+E 63A 380-415V, 6H Straight Plug - Mantle Terminal
Gewiss GW61052H 3P+E 63A 380-415V, 6H Straight Plug - Mantle Terminal
Regular price
$49.26
Regular price
$49.26
Sale price
$72.44
Unit price
per
Couldn't load pickup availability
-
Ordered
- - -
Order Ready
- - -
Delivered
Gewiss GW61052H 3P+E 63A 380-415V, 6H Straight Plug - Mantle Terminal
Regular price
$49.26
Regular price
$49.26
Sale price
$72.44
Unit price
per
Product Details
- Colour: Red
- Rated current (A): 63
- IP degree: IP67
- No. of poles: 3P+E
- Reference: 6H
- Mechanical resistance: IK09
- Type: Straight plug
- Rated voltage: 380 - 415 V
- Frequency: 50/60 Hz
- Terminal tightening capacity: 6-16mm² flexible cables - 6-25mm² rigid cables
- Cable clamp tightening capacity: 17.9-37 mm
- Operating temperature: -25 +55 °C
- Type of wiring: Mantle terminal
- Type of material: Halogen-free in compliance with EN 60754-2
- Electrocod: 2231
- Glow wire test: 850 °C (active parts) - 650 °C (passive parts)
- Total number of operations: > 2000
- Breaking capacity at 1.1 Un: 79 A
- Insulation resistance: > 10 MΩ
