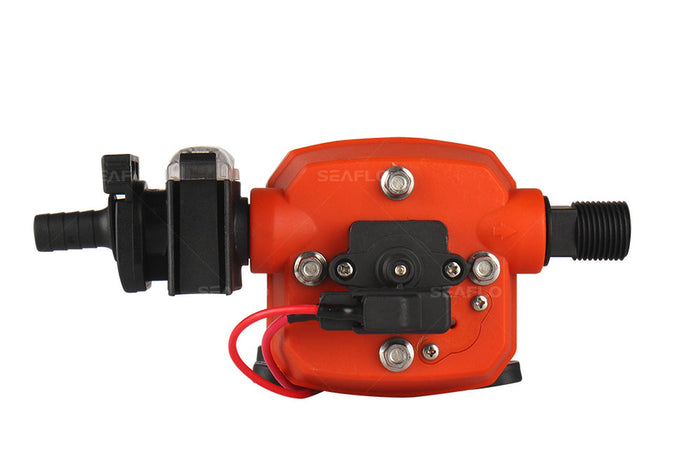

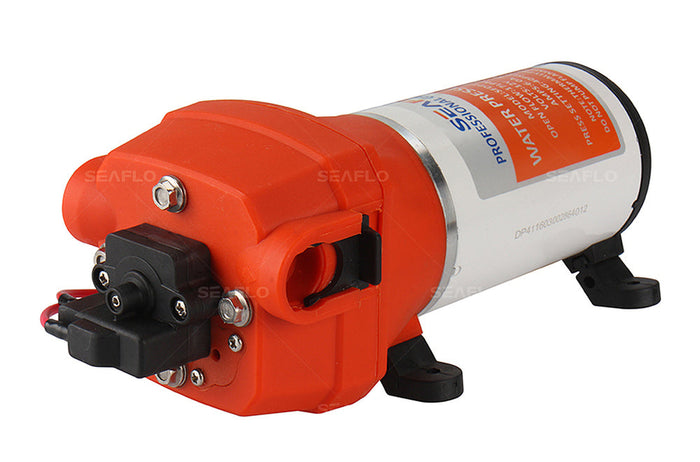

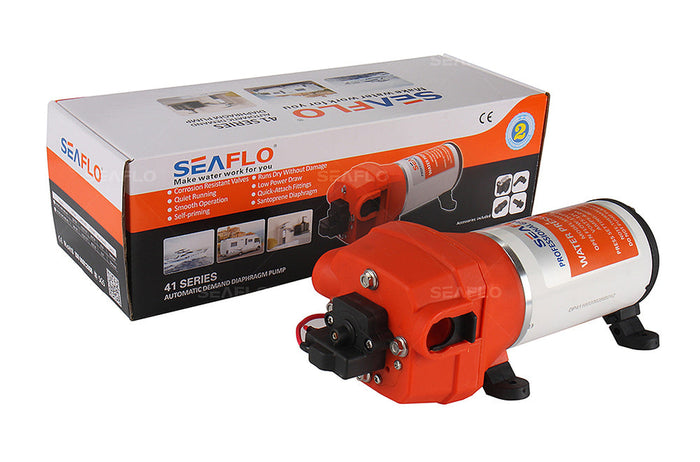

41 Series Diaphragm Pump

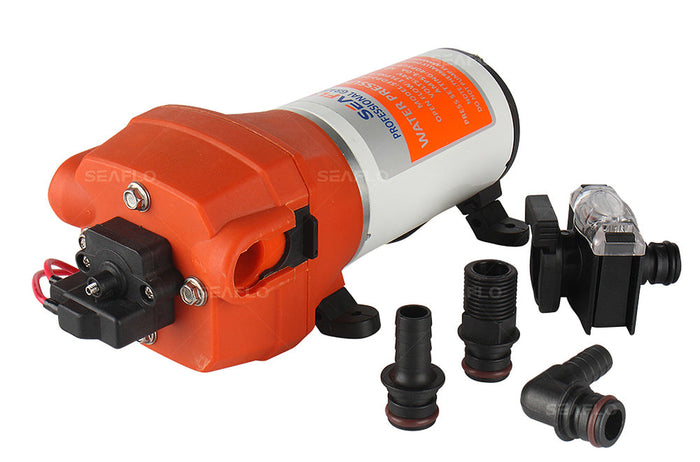

The SEAFLO 12v Series 41 17L/M Diaphragm Water Pressure Pump is a general-duty on-demand positive displacement pump. Thanks to the quad chamber diaphragm and internal bypass,the 41-Series pump provides high volume water flow with reduced pump cycling. It excels in providing high-water flow, with moderate pressure and is suitable for all activities needing these requirements. These models are designed to run on water systems with up to 5 outlets and no accumulator tank. The unit is self-priming and can run dry without damage. It also features a built in pressure switch, allowing the unit to start and stop when it detects a faucet being opened. These pumps are supplied with 12mm and 19mm fittings. Our SEAFLO pumps come with a 3 year warranty.

• Positive Displacement Pump
• Run-Dry capable
• Quiet operation
• Pressure detection (On demand switch), as well as a bypass mode
• Low amp draw
• Industry mounting pattern
• Thermally protected

Specifications

• 60°c temperature max
• 1.8m (6ft) suction lift
• 40PSI (2.8 bar)
• 1/2"-14 MNPT Inlet/Outlet ports
• Intermittent Duty
• 16AWG, 1.3m (4.5ft) long leads with 2-pin connector
• 12V
